Custom Bare PCBs for Medical Device Electronics
PCB Manufacturing for Medical Devices
PCBELEC manufactures custom bare PCBs for medical device electronics to customer-defined fabrication and acceptance requirements. Review the board construction, supplier documentation and release conditions for your development or production project.
Share your board requirements: sales@pcbelec.com
Device Context & Board Roles
Define the Device Context and Board Role

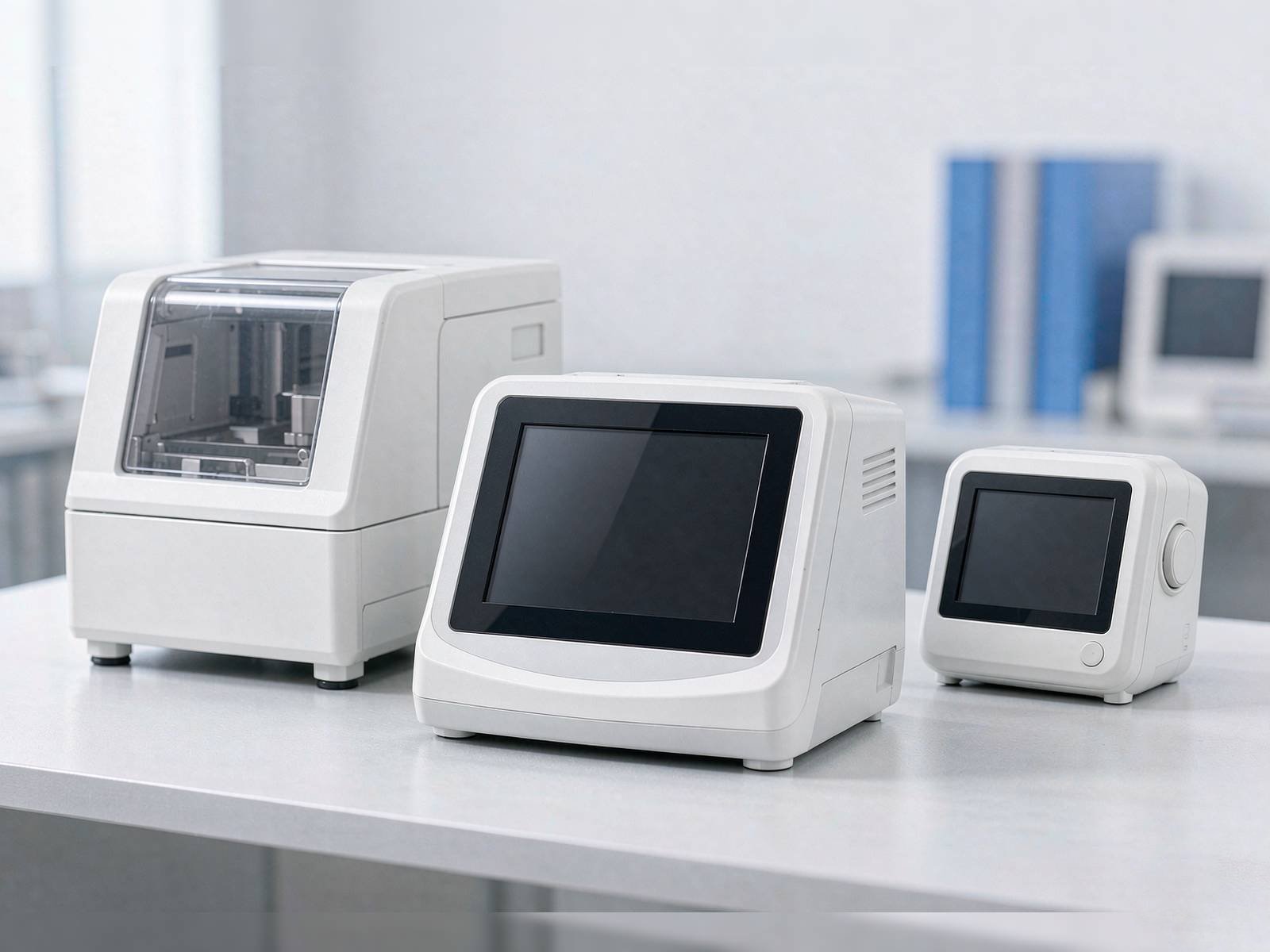

Medical device electronics can contain different boards for measurement, processing, control and connection. Identify the actual board and its requirements rather than relying on the device name alone.
Manufacturing the Specified Bare Board
PCBELEC's scope here is bare PCB fabrication and agreed inspection records. Circuit design, component sourcing, assembly and device-level validation are separate project activities.
Review Manufacturing Capabilities-
Patient Monitoring & Measurement
Board requirements for measurement, processing, control and interfaces within the specified monitoring equipment design.
Confirm: board role, interfaces, stackup, critical features and applicable customer requirements.
-
Diagnostic & Laboratory Equipment
Bare-board requirements for control, instrument interfaces and associated electronics in diagnostic or laboratory equipment.
Confirm: materials, mechanical interfaces, installation conditions and specified verification records.
-
Imaging & Instrument Interfaces
Board constructions for specified processing, connection and interface functions within imaging and instrument electronics.
Confirm: routing density, connections, interconnect structure and any specified impedance requirements.
-
Wearable & Portable Medical Electronics
Board requirements for compact product formats with defined packaging, mounting and connection conditions.
Confirm: outline, thickness, interfaces, any flexible regions and application-specific acceptance requirements.
Supplier Qualification & Order Acceptance
Establish Supplier and Acceptance Requirements
Identify mandatory supplier conditions and board acceptance criteria during inquiry. Keep certification evidence, fabrication requirements and device-level approval as distinct subjects.
Microsection Reports with Every Order
PCBELEC provides a microsection report with each order. Identify additional sample, measurement and report-format requirements in the inquiry.
100% Impedance Testing
Where impedance is specified, provide targets, tolerances and relevant structures. Confirm the test approach, coverage definition and reporting requirements.
IPC Class 3 Support
Specify the governing standard, revision, class and customer additions. Class 3 support does not mean every medical PCB order defaults to Class 3.
Swipe horizontally if needed to view all supplier and acceptance requirements.
| Requirement Area | What to Define | Evidence or Agreement to Review |
|---|---|---|
| Supplier Certification & Scope | Required certification, manufacturing site, permitted scope and any customer-specific supplier restrictions. | The relevant certificate, legal entity, site, scope and validity. If ISO 13485 is required, confirm its applicability to the proposed supply. |
| Governing Board Requirements | Applicable documents and revisions, acceptance class, drawing notes and customer additions. | A consistent specification across the fabrication files, drawing and accepted order, with conflicting instructions resolved. |
| Inspection & Verification | Critical features, limits, methods, sample requirements and requested result format. | The accepted inspection scope and required records. Additional evaluation is identified separately rather than assumed to be included. |
| Materials & Substitution | Approved grades or criteria, material restrictions and conditions for proposing alternatives. | The approved construction and any required customer authorization before a material or construction change. |
| Identification & Documentation | Board and revision references, lot or marking requirements, delivery records and any specified retention conditions. | The identification and documentation included in the agreed scope, connected to the required manufacturing revision. |
| Change Control & Customer Release | Notification, approval, deviation and customer release conditions, including any additional supplier review. | Accepted engineering answers and approval records. Prototype acceptance does not automatically establish customer production or device approval. |
Board Construction & Material Requirements
Match the PCB Construction to the Specified Design
Select the construction from the actual routing, interconnect and mechanical requirements. A medical application does not automatically require HDI, flexible circuits or a particular substrate.
Swipe horizontally if needed to compare all construction options.
| Construction / Material Route | When to Evaluate | What to Specify | Related Resource |
|---|---|---|---|
| Rigid & Multilayer | Designs with defined board formats and routing, reference or power-layer requirements. | Stackup, material grade, dielectric thicknesses, copper, finished thickness, holes and mechanical tolerances. |
Rigid PCB →
Multilayer PCB → |
| HDI | Dense routing or compact layouts that specify microvias, build-up interconnects or defined fine features. | Build-up sequence, via spans, dielectric system, pad geometry, filling or capping requirements and acceptance criteria. | HDI PCB → |
| Flexible | Designs requiring a flexible circuit region or connection with specified installation or movement conditions. | Layer structure, bend locations and conditions, coverlay, stiffeners, connection areas and finished thickness. | Flexible PCB → |
| Rigid-Flex | Designs specifying integrated rigid and flexible regions within a defined mechanical arrangement. | Region boundaries, stackup, local thicknesses, rigid-to-flex transitions, bend conditions and interface dimensions. | Rigid-Flex PCB → |
| Customer-Specified Materials & Special Constructions | Projects with a named material system or special construction defined by the approved design. | Exact grade or measurable criteria, construction details, compatibility requirements, approval conditions and additional evaluation scope. |
PCB Materials →
Manufacturing Capabilities → |
Engineering Inputs & Fabrication Instructions
Turn Device Requirements into Fabrication Instructions
Provide the board-level requirements derived from the device design. Keep the drawing, stackup and fabrication data consistent, with critical conditions identified before manufacturing release.
-
Mechanical Fit & Interfaces
Define the outline, finished thickness, datums, mounting holes, connector positions and any region-specific dimensions. Identify features that must align with the device assembly.
Include: critical tolerances and any required measurement conditions.
-
Stackup & Critical Electrical Features
Specify layer order, material assignments, dielectric thicknesses, copper and critical conductor geometry. Provide impedance requirements where they apply.
Include: reference layers, targets, tolerances and change-approval restrictions.
-
Holes, Vias & Connection Features
Define through, blind, buried or microvia structures, layer spans and finished-hole requirements. Identify any specified filling, capping or connection features.
Include: dimensions, tolerances and the acceptance criteria for critical interconnects.
-
Spacing & Insulation Requirements
Provide customer-defined spacing, slots, material and insulation requirements in the fabrication drawing. Identify the applicable acceptance conditions and any requested verification.
Scope: manufacturing review does not replace device safety design or compliance evaluation.
-
Finish, Cleanliness & Packaging
State the required surface finish, solder mask, markings, cleanliness criteria and packaging. Identify any restrictions involving materials, residues or handling.
Include: measurable limits, methods and required records where specified.
-
Special Exposure & Evaluation Conditions
If the project includes cleaning, disinfection, sterilization or other special exposure, identify which item is exposed and the requirements that apply to the board.
Include: exposure conditions, evaluation responsibility and agreed acceptance limits.
Development, Release & Repeat Manufacturing
Control the Build from Development to Repeat Production
Keep the manufacturing files, acceptance requirements and approval conditions aligned at each stage. Identify what is preliminary, what has been accepted and what must remain consistent for subsequent orders.
-
Submit the Development Package
Provide the current files, drawing, stackup and project requirements. Mark preliminary conditions and identify mandatory supplier or documentation requirements before quotation.
-
Define the Evaluation Build
Confirm the revision, construction, quantity, acceptance criteria and required records. Keep any customer evaluation or additional testing separate from routine fabrication acceptance.
-
Establish the Approved Manufacturing Definition
Incorporate accepted engineering answers and evaluation changes into the released package. Resolve conflicting requirements and record any approved substitutions or deviations.
-
Confirm Repeat Orders and Changes
Reference the required board, revision and approved construction. Confirm quantity, delivery format and records for each order, with proposed changes reviewed under the agreed approval conditions.
Include These Details with Your Inquiry
Board Role & Project Stage
Device context, board function and whether the data concerns development, evaluation or released production.
Files & Revision
Gerber and drill data, fabrication drawings and the current required revision.
Construction & Critical Features
Stackup, materials, copper, thickness, interconnects and critical electrical or mechanical requirements.
Supplier & Approval Conditions
Mandatory supplier qualifications, site restrictions, substitution rules and customer release requirements.
Acceptance & Records
Governing specifications, verification, identification, report format and any special handling or packaging requirements.
Quantity & Delivery
Order quantity, board or panel format, destination, target dates and planned repeat supply.
Medical Device PCB Manufacturing FAQ
Clarify the Scope Before You Release the Board
Practical answers about fabrication requirements, supplier evidence, construction and change control for medical device electronics.
Need a project-specific answer?
sales@pcbelec.comWhat does “medical PCB” mean for a fabrication order?
It describes the intended application, not a complete material, construction or acceptance specification. Provide the board role, approved fabrication data and governing customer requirements.
Define supplier conditions, inspection records and any special handling or evaluation separately. The application label does not establish finished-device qualification.
Are all PCBs used in medical devices required to be IPC Class 3?
No. The acceptance class must follow the governing project requirements rather than being inferred from the medical application label.
PCBELEC supports IPC Class 3 requirements. Specify the applicable board standard, revision, class and customer additions for the actual order.
What supplier documentation should be reviewed?
Review the documents required by your supplier-qualification process, including relevant certification scope, manufacturing site and any customer approval conditions.
Separately define order-specific records, such as microsection reports, specified verification, identification and change approvals. PCBELEC provides a microsection report with every order; additional records should be identified during inquiry.
How is ISO 13485 certification different from device approval?
ISO 13485 concerns a quality management system within its certified scope. It is not a product approval for an individual bare PCB or finished medical device.
Where required, review the certificate's entity, site, scope and validity. Device safety, performance and regulatory authorization require their own applicable evidence and processes.
When should HDI, flex or rigid-flex be considered?
Consider the construction specified by the routing, interconnect, packaging and connection requirements. Compact equipment does not automatically establish a need for every advanced board type.
For HDI, define the build-up and via structure. For flex or rigid-flex, define regions, bend conditions, thicknesses and interfaces. Review compatibility with the complete material system.
Can bare-board records establish biocompatibility or sterilization suitability?
Not by themselves. Bare-board fabrication and inspection records do not establish the biological safety or sterilization suitability of the finished device.
Identify the relevant contact or exposure conditions, evaluation object, method, responsibility and acceptance limits. Any additional activity must be separately defined and accepted.
How should material changes and repeat orders be controlled?
Reference the required board, revision and approved manufacturing definition. State substitution restrictions and notification or approval conditions before order acceptance.
Record proposed material, stackup, geometry or process changes and obtain the required approval before release. Confirm quantity, delivery format and documentation for each repeat order.
Does PCBELEC provide design, assembly or device-level testing?
PCBELEC focuses on custom bare PCB manufacturing. The service described here covers the agreed fabrication, inspection and delivery records, not circuit design, component sourcing, assembly or device-level validation.
For assembly inquiries, use the PCBJHY referral in the site footer. Any additional bare-board evaluation must be separately defined and accepted.
