RF and High Frequency PCB Materials Selection Guide
Compare PCB material systems against your RF requirements—not a brand name or a single dielectric value. The right specification connects dielectric behavior, signal loss, copper profile, layer thickness and environmental conditions to a manufacturable PCB construction.
Use this guide to shortlist material options and prepare customer-defined stackup requirements, material specifications and fabrication files for manufacturing review.
- Compare material systems and selection tradeoffs
- Review electrical, thermal and environmental requirements
- Prepare clear specifications for PCB fabrication

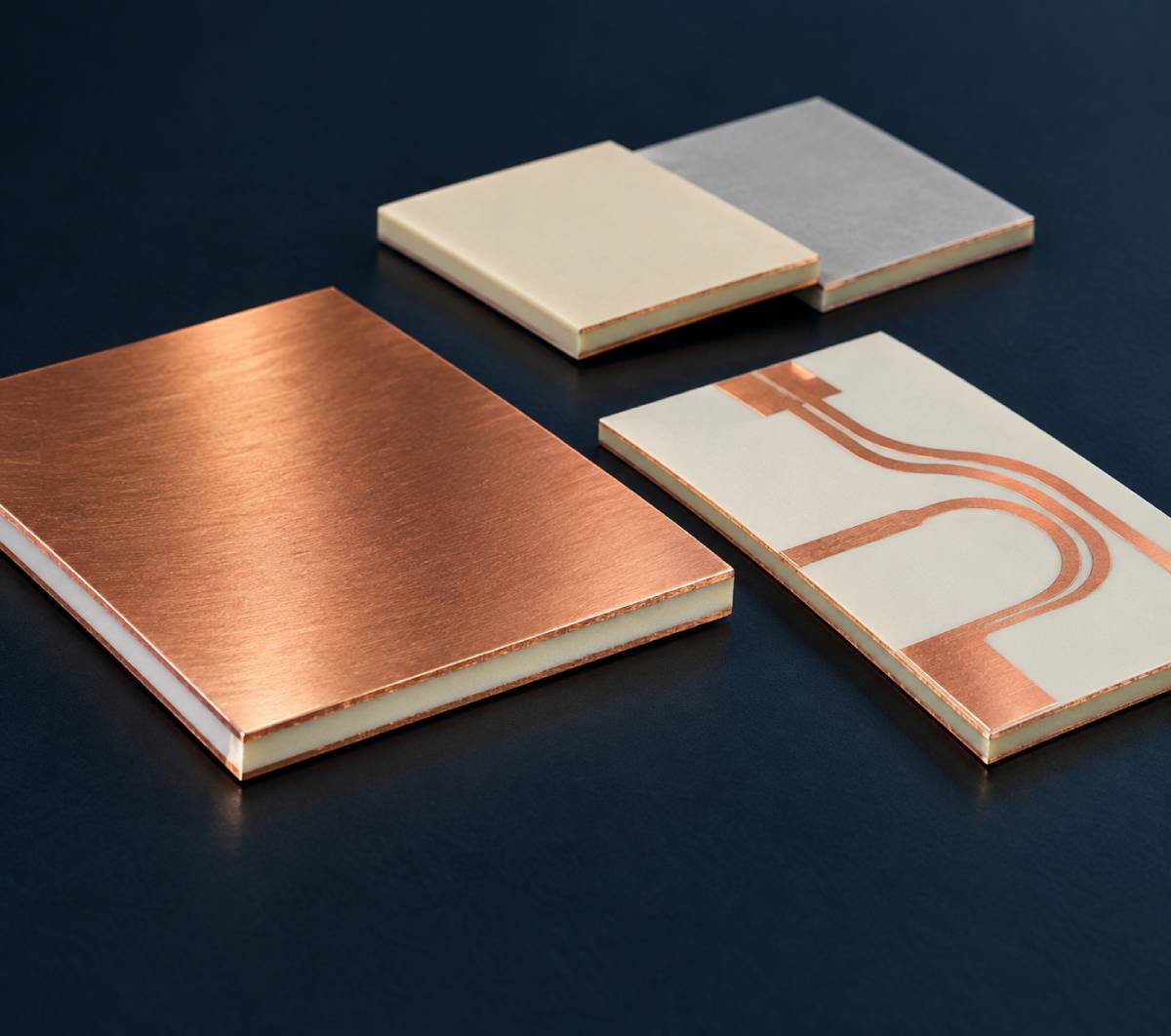

What Are RF and High Frequency PCB Materials?
RF and high frequency PCB materials are circuit substrates evaluated for applications where dielectric behavior, transmission loss and electrical stability matter to the finished circuit. The term describes a selection category, not one resin system, material grade or guaranteed performance level.
Candidate materials include specified epoxy-based laminates, hydrocarbon/ceramic thermoset systems and several PTFE-based constructions. Their suitability depends on the exact grade, copper configuration, dielectric thickness and operating conditions—not simply the name of the material family.
A manufacturing specification should connect the customer's electrical requirements to a defined material and stackup. Stating only “high frequency material” leaves important choices unresolved, including the dielectric around critical signal layers and the bonding materials used between cores.
For general rigid-board material considerations, see our FR-4 PCB Material guide.
Compare RF PCB Material Systems
Use the material system to narrow the selection direction, then verify the exact grade. Electrical values, dimensional behavior and processing requirements can vary substantially within the same family.
Swipe or scroll horizontally on smaller screens to compare all columns.
| Material Direction | Selection Priorities | Manufacturing Considerations | Information to Verify |
|---|---|---|---|
| Specified FR-4 Laminate | A practical starting point when the actual laminate and circuit geometry can meet the required electrical and environmental targets. | Familiar rigid-board processing does not remove the need to define dielectric spacing, copper construction and critical feature tolerances. | Exact grade, frequency-dependent dielectric data, line-loss budget, thickness tolerance and operating conditions. |
| Low-Loss Epoxy-Based Laminate | An enhanced rigid-laminate direction when conventional material loss is insufficient and the selected grade offers the required electrical improvement. | Review the specific resin system, compatible prepreg, lamination requirements and copper options. | Dk and Df test conditions, resin and glass construction, copper profile, thermal properties and material availability. |
| Hydrocarbon/Ceramic Thermoset | RF dielectric control and low-loss performance with grade-specific thermal and dimensional characteristics. | Some grades support FR-4-style processing, but the exact laminate, bonding system and process requirements must still be confirmed. | Process and design dielectric references, reinforcement, thickness, copper configuration and compatible bonding materials. |
| Ceramic-Filled PTFE | PTFE-based electrical performance with ceramic fillers used to modify dielectric, thermal or dimensional behavior. | Confirm PTFE-compatible hole preparation, handling, bonding interfaces and the proposed multilayer process. | Exact filler and reinforcement structure, loss, temperature response, CTE, thickness and copper options. |
| Glass-Reinforced PTFE | A PTFE-based direction whose electrical and mechanical behavior depends on the type and arrangement of glass reinforcement. | Processing and dimensional behavior depend on the specific product; microfiber and woven-glass constructions should not be treated as identical. | Reinforcement type, dielectric anisotropy where relevant, dimensional stability, copper construction and fabrication compatibility. |
- These categories are selection directions, not mutually exclusive definitions. Some laminates combine ceramic fillers with glass reinforcement.
- “Low loss” is a relative description. Compare the stated data at relevant frequencies and conditions rather than assuming a universal performance level.
- Hybrid describes a stackup architecture. It is not a separate resin system and should be specified through its actual cores and bonding layers.
- This overview does not constitute a PCBELEC stock list, material-availability commitment or manufacturing capability guarantee for every material family.
Start With the Electrical and Environmental Requirements
Define what the circuit must achieve before comparing laminate names. Clear customer requirements help distinguish mandatory performance targets from preferred material options and manufacturing-review items.
Frequency Range and Circuit Function
Identify the operating band and the function of the RF-critical paths. Material requirements may differ between transmission lines, filters, resonant structures and antenna feeds.
Customer input: Operating frequency range, circuit function and critical signal layers.
Path Length and Allowable Loss
Material loss becomes meaningful in the context of the actual signal path. Evaluate the required loss budget alongside conductor configuration, transmission-line geometry and path length.
Customer input: Critical path lengths, insertion-loss targets and the conditions used to define acceptance.
Impedance, Phase and Resonant Behavior
Some circuits require more than a nominal impedance. Identify any sensitivity to phase, electrical length or resonant-frequency variation so the relevant material and dimensional requirements remain explicit.
Customer input: Impedance tolerances, phase or resonance limits and customer-defined critical geometry.
Temperature and Humidity Exposure
Review dielectric and dimensional behavior under the intended environmental conditions. Room-temperature material values alone do not describe performance across a changing operating environment.
Customer input: Temperature range, humidity exposure and required environmental qualification conditions.
RF Power and Thermal Requirements
High-power RF structures require attention to both electrical loss and temperature-related behavior. Review material thermal properties against the customer's defined operating and cooling conditions.
Customer input: Relevant power conditions, temperature limits and customer-defined thermal requirements.
Mechanical Fit and Manufacturing Requirements
Material selection must also fit the physical board, proposed layer arrangement and production requirements. A suitable electrical candidate still needs a compatible fabrication construction.
Customer input: Board outline, thickness limits, layer count, fabrication tolerances, quantity and material-approval restrictions.
How to Compare Dk, Df and Temperature Stability
Compare dielectric data within its measurement context. A useful material comparison identifies the frequency, test method, direction and conditioning behind each value, then connects those references to the customer's circuit requirements.
Process Dk and Design Dk
Suppliers may publish a specification or Process Dk alongside a separate Design Dk reference. These values can differ because the measurement methods and test structures are different.
Use the reference appropriate to the customer's modeling method and operating conditions. Not every supplier publishes both values, and neither should be treated as a universal input for every circuit structure.
Material Dk and Effective Dielectric Constant
Material Dk describes a dielectric reference. Effective dielectric constant describes the propagation behavior of a particular transmission-line structure.
For microstrip, the fields occupy both the substrate and the surrounding space. Geometry and the dielectric environment therefore matter, and a measured circuit value should not automatically be substituted for a supplier's material value.
Df and Finished-Line Insertion Loss
Dissipation factor, or Df, describes dielectric loss under stated conditions. Compare it at relevant frequencies and with compatible measurement methods.
Finished-line insertion loss also includes conductor and other structural contributions. A lower Df does not by itself establish lower loss for every finished PCB geometry.
TCDk and Thermal Expansion
Thermal coefficient of dielectric constant, or TCDk, describes the temperature-related change in Dk over a specified range. Coefficient of thermal expansion, or CTE, describes physical dimensional change.
These are separate inputs. A temperature-sensitive RF structure may need both dielectric stability and dimensional behavior reviewed against its permitted phase or resonant-frequency drift.
Swipe or scroll horizontally on smaller screens to review comparison conditions.
| Comparison Item | What to Confirm | Misinterpretation to Avoid |
|---|---|---|
| Frequency and Method | Measurement frequency, test configuration and the supplier's stated use of the value. | Ranking materials using numbers obtained at different frequencies or by unrelated methods. |
| Direction and Conditioning | Relevant material direction, temperature, humidity and specimen conditioning. | Assuming one reported value describes every direction and operating environment. |
| Value Classification | Whether the value is typical, specified with a tolerance or supplied as a design reference. | Treating a typical value as a guaranteed finished-board acceptance limit. |
| Material and Construction | Exact grade, applicable thickness, copper configuration and document revision. | Extending one grade's data to an entire brand or material family. |
| Customer Design Context | Transmission-line type, dielectric environment and electrical targets defined by the customer. | Assuming a datasheet value alone validates the complete circuit. |
Copper Profile, Dielectric Thickness and Bonding Layers
A laminate grade is only part of the electrical structure. Copper configuration, signal-to-reference spacing and bonding layers must be included in the customer's stackup definition so the manufacturing construction can be reviewed against the intended design assumptions.
Copper Profile Is More Than Copper Weight
Copper surface profile at the laminate interface can influence conductor loss and propagation behavior. A nominal copper weight does not identify the foil profile or the complete conductor configuration.
Specify a required foil product or profile where the customer design depends on it. A visibly shiny exposed surface is not evidence of a particular low-profile copper construction.
Define the Critical Layer Spacing
The dielectric distance between a signal conductor and its reference plane is a design input. Overall board thickness does not establish this spacing.
Identify the relevant core or laminated bonding-layer thickness, its tolerance and the actual dielectric region used by the customer's electrical model.
Include Bonding Materials in the Structure
Prepreg, bondply and bonding films join layers and create additional dielectric regions. Their electrical properties and finished thickness can matter wherever RF fields interact with those regions.
Select a compatible bonding construction for the exact core materials and fabrication process. Core data should not automatically be assigned to a different bonding layer.
Swipe or scroll horizontally on smaller screens to review stackup inputs.
| Construction Input | Customer Specification | Manufacturing Review Focus |
|---|---|---|
| Core Dielectric | Exact grade, nominal dielectric thickness and tolerance for each defined core. | Available material configuration and consistency with the submitted stackup. |
| Bonding Dielectric | Required bonding material, layer arrangement and target laminated dielectric spacing. | Compatibility, resin flow, copper distribution and achievable finished construction. |
| Copper Configuration | Starting foil thickness, required foil profile and finished copper requirements. | Material configuration, applicable plating and critical feature manufacturability. |
| Signal and Reference Layers | RF-critical layers, corresponding reference planes and relevant dielectric regions. | Whether the proposed fabrication stackup preserves the customer-defined layer structure. |
| Finished Board Thickness | Overall thickness, tolerance and mechanical measurement requirements. | Compatibility with the full stackup and mechanical fabrication requirements. |
When Can FR-4 Meet an RF Requirement?
FR-4 suitability should be assessed against a specified circuit and material grade—not a universal frequency cutoff. The decision depends on the customer's electrical targets, signal-path geometry, environmental conditions and required manufacturing consistency.
-
Define What Must Be Met
Establish the operating band, allowable loss, impedance tolerance and any phase or resonance limits. State the environmental conditions and acceptance methods used to assess those requirements.
-
Evaluate a Specific FR-4 Construction
Use the exact laminate, dielectric spacing, copper configuration and relevant material data. Treat customer modeling or validation results as evidence for that construction—not for every FR-4 product.
-
Identify the Remaining Performance Gap
If the proposed construction cannot meet the targets, identify whether the limiting factor is dielectric loss, material variation, environmental response or another part of the circuit structure.
Retain FR-4 When the Requirements Are Met
- The specified signal paths remain within the customer's allowable loss budget.
- Impedance, phase and resonance requirements can be met with the defined material and geometry.
- Environmental exposure stays within the accepted electrical and reliability margins.
- The required material configuration and manufacturing tolerances can be confirmed.
Evaluate an Upgrade When the Material Is Limiting
- Dielectric loss contributes too much to the permitted signal-path loss.
- Dielectric variation exceeds the design's permitted electrical margin.
- Temperature or humidity response conflicts with the required stability.
- A specialty material offers a defined benefit that justifies its cost and processing requirements.
Full Specialty-Laminate vs Hybrid PCB Stackups
Specialty materials can be used throughout a multilayer construction or assigned to selected RF-critical regions. The appropriate approach depends on the customer's signal paths, reference planes, dielectric requirements and manufacturing constraints.
Swipe or scroll horizontally on smaller screens to compare stackup approaches.
| Review Factor | Full Specialty-Laminate Approach | Hybrid Approach |
|---|---|---|
| Material Allocation | Specialty laminate cores are used broadly, with each bonding interface explicitly defined. | Specialty materials are allocated to selected regions, with other specified laminates used elsewhere. |
| RF Dielectric Environment | The customer must still identify the actual core and bonding materials surrounding critical conductors. | Particular attention is needed where RF fields interact with different materials or bonding regions. |
| Manufacturing Compatibility | Review the chosen laminate grades, bonding system, hole processing and dimensional requirements. | Review those requirements across the mixed material system and all relevant interfaces. |
| Mechanical and Thermal Behavior | Check material placement, copper balance, thickness and thermal-expansion behavior. | Check the same factors while accounting for the differences between combined materials. |
| Cost and Procurement | Greater specialty-material use may increase material cost; the final quotation depends on the complete build. | Reduced specialty-material use may help, but additional construction complexity can affect the total cost. |
| Approval Requirements | Specify the exact grades, thicknesses, copper configurations and permitted changes. | Also define which layers may use alternative materials and which RF interfaces must remain unchanged. |
These are construction approaches, not fixed stackup recipes. Placing a specialty laminate on an outer layer does not establish the dielectric environment of every RF path.
Manufacturing Compatibility and Material Procurement
An electrically suitable material still needs a confirmed supply configuration and compatible fabrication construction. Review these requirements before releasing production files, especially when the stackup combines different resin systems or customer-controlled material specifications.
Grade, Thickness and Copper
Confirm the complete product configuration rather than the family name alone. Required dielectric thickness, copper foil and any product variant should match the customer specification.
Bonding and Hole Processing
Lamination, drilled-hole preparation and metallization requirements depend on the actual materials and interfaces. Review the complete build rather than applying one generic process to every RF laminate.
Geometry and Fabrication Tolerances
Identify RF-critical dimensions and permitted tolerances. Define whether any trace or gap adjustments require customer approval before manufacturing files are changed.
Availability and Project Timing
Material availability must be checked for the exact grade and configuration. A supplier catalogue entry does not establish local stock or a guaranteed production delivery date.
Substitution Approval
State whether alternatives may be proposed. Changes to grade, copper, thickness or bonding layers need the customer's approval where they affect a controlled specification or design assumption.
Inspection and Required Documentation
Define dimensional inspection, electrical checks, reporting and traceability requirements. Any specialized RF verification must have an agreed method and confirmed project scope.
Move From Material Selection to Fabrication Review
Use your customer-defined material specifications, stackup and critical fabrication requirements as the starting point for the manufacturing discussion.
How to Specify RF PCB Materials for Quotation
Provide a defined fabrication package and distinguish mandatory requirements from preferences and unresolved review items. This helps keep material selection, stackup assumptions and quotation scope consistent.
Swipe or scroll horizontally on smaller screens to view the complete checklist.
| RFQ Input | Information to Provide | Purpose |
|---|---|---|
| Fabrication Files | Gerber or agreed manufacturing files, drill files, board outline, fabrication drawing and revision identifier. | Establishes the exact board and specification being quoted. |
| Material Requirements | Exact grades where specified, required product variants and any customer-approved material list. | Defines mandatory materials and identifies candidates that still require approval. |
| Stackup | Layer count, core and bonding materials, critical dielectric spacing, tolerances and reference planes. | Connects the fabrication construction to the customer-defined electrical structure. |
| Copper Configuration | Starting foil thickness, required profile or foil product, and finished copper requirements. | Supports material procurement and critical conductor fabrication review. |
| Critical RF Features | Operating band, critical signal layers, trace widths, gaps and dimensions that cannot change without approval. | Identifies design-controlled features and manufacturing constraints. |
| Electrical Acceptance | Required impedance targets and tolerances, plus any separately defined RF measurement criteria. | Separates fabrication requirements from specialized performance verification. |
| Finish and Mask | Surface finish, selective coverage, solder-mask openings and exposed RF areas. | Defines the finished conductor surfaces and protective coverage. |
| Mechanical Requirements | Board dimensions, finished thickness, tolerances, holes, cutouts, slots and panel requirements. | Confirms mechanical fit and fabrication features. |
| Environment and Reliability | Relevant temperature, humidity and customer qualification requirements affecting material approval. | Provides context for reviewing the specified material and construction. |
| Quantity and Delivery | Prototype or production quantity, expected repeat demand, required delivery date and delivery destination. | Supports procurement and quotation planning; timing remains subject to confirmation. |
| Documentation and Changes | Required traceability, reports, acceptance standards and approval rules for material or stackup changes. | Defines project deliverables and prevents unapproved substitutions. |
If specialized RF measurements are requested, include the test structure, frequency range, reference planes, limits and reporting requirements. Availability and scope must be confirmed for the project.
Have Your RF PCB Fabrication Requirements Defined?
Prepare your customer-approved material specification, stackup and fabrication files for the next manufacturing discussion. Explore our high-frequency PCB fabrication service for prototype and production requirements.
When a Specialty RF Material Is Not Necessary
A specialty laminate should address a defined requirement. If the existing material construction meets the customer's electrical and environmental targets, an upgrade may add cost or procurement complexity without a necessary benefit.
When the Existing Construction Meets the Targets
Retain a customer-approved conventional laminate when its specified construction meets the allowable loss, impedance, stability and reliability requirements. Base this decision on the actual grade and circuit, not an assumption that all conventional materials perform identically.
When Only Selected Regions Need Specialty Material
A customer-defined hybrid construction may avoid using specialty laminates throughout the board. This is only appropriate when the RF dielectric regions are clearly defined and the mixed-material build is compatible with the manufacturing requirements.
When the Main Requirement Is Not RF Dielectric Performance
Thermal robustness, repeated bending or direct heat spreading may call for a different material architecture. Start with that primary requirement, then verify the selected construction against any electrical needs. A low-loss rigid laminate is not a universal substitute.
When Another Circuit Feature Is the Limitation
Connector launches, reference-plane discontinuities and interconnect transitions can limit performance independently of laminate loss. The customer's design team should identify the dominant issue before approving a material change.
Explore Related PCB Material Paths
Use a material-specific guide for deeper information once the main selection direction is clear.
FR-4 PCB Material
Review standard rigid-laminate construction, material properties and specification requirements.
Explore FR-4 Material →Rogers PCB Material
Compare Rogers families and common grades, with guidance on dielectric references and stackup inputs.
Explore Rogers Materials →High Tg PCB Material
Consider thermal requirements separately from low-loss qualification. Higher Tg alone does not establish RF suitability.
Explore High Tg Materials →Specialty Laminates
Define exact customer-approved grades, unusual dielectric targets and material documentation requirements before procurement.
Explore Specialty Laminates Materials →Frequently Asked Questions About RF PCB Materials
Find answers to common questions about RF material selection, dielectric data, hybrid stackups and fabrication specifications. A material choice should be reviewed against the customer’s defined circuit structure, operating conditions and manufacturing requirements.
Suitability depends on the application's required loss, dielectric consistency, environmental stability and manufacturing construction. The exact grade, thickness, copper configuration and bonding layers matter more than a general “RF material” label.
There is no universal frequency cutoff. Evaluate the specified FR-4 grade against the customer's signal-path length, allowable loss, impedance tolerance, phase or resonance requirements and operating environment. Upgrade when the material construction cannot meet a defined requirement.
No. Rogers is a supplier with several material families, including both PTFE-based and non-PTFE constructions. PTFE describes a resin system, not a brand. Always identify the exact grade and its fillers, reinforcement and copper configuration.
No. Dk is a design input rather than a universal quality ranking. The appropriate value depends on the customer's transmission-line geometry and circuit requirements. Material consistency, loss, temperature response and fabrication compatibility also need to be evaluated.
No. Df describes dielectric loss under stated measurement conditions. Finished-circuit insertion loss also includes conductor and structural contributions. Compare materials using the relevant test conditions and the actual circuit configuration.
Suppliers may use different test methods and structures for material specification and circuit-design references. These differences can produce different values without either being incorrect. The customer's design team should identify the reference appropriate to its model and frequency range.
Yes, where the customer-defined electrical structure and manufacturing construction support a hybrid approach. Specify the material around each critical RF conductor, including bonding layers and reference planes. A specialty outer layer alone does not establish the dielectric environment of every RF path.
Copper surface profile at the laminate interface can affect conductor loss and propagation behavior. Copper weight alone does not identify that profile. Where the design depends on a particular foil configuration, include it in the material specification and substitution-approval requirements.
No. Tg describes a thermal-transition characteristic, while dielectric loss is a separate property. A High Tg laminate must still be assessed using its relevant Dk, Df, copper configuration and customer-defined RF requirements.
Not automatically. Similar Dk values do not establish equivalent loss, thermal behavior, dimensional stability, thickness tolerance or processing requirements. Define a customer approval process for any change to material, copper or bonding construction.
No. PCBELEC manufactures PCBs from customer-provided fabrication files and production requirements. Manufacturing compatibility and DFM review do not include circuit design, PCB layout, RF simulation or application-level validation.
Provide fabrication files, quantity, board dimensions, layer count, material grades, stackup, dielectric spacing, copper requirements, finish and critical RF geometry. Include acceptance criteria, documentation requirements and the approval policy for material or construction changes. Clearly identify unresolved items that require manufacturing review.
Customer-Defined Specifications · PCB Fabrication
Turn Your RF Material Specifications Into a Manufacturable PCB
Bring your material requirements, customer-defined stackup and fabrication files to the manufacturing stage. PCBELEC reviews the proposed construction for fabrication compatibility, with critical specifications and approval requirements clearly identified.
- Material and construction compatibility
- Customer-file DFM review
- Prototype and production PCB fabrication
Exact material availability, fabrication options, delivery requirements and any specialized verification scope are confirmed during project review.
