Introduction
Gold finger PCBs sit at the heart of many plug‑in cards, expansion boards and modular systems, yet their design is often treated as an afterthought. A few small mistakes around the edge connector can quickly turn into intermittent contacts, premature wear or even boards that simply do not fit the mating slot. Unlike ordinary pads, PCB gold fingers must withstand repeated mechanical insertion, maintain low contact resistance over time and survive the full manufacturing process without damage.
This article walks through the most important gold finger PCB design rules and shows the common pitfalls that engineers run into during layout. By understanding how gold fingers work, how to size and bevel them correctly, and how to prepare your files for DFM, you can greatly improve the reliability of your edge‑connector designs and avoid costly redesigns.
Understanding the Role of PCB Gold Fingers
What are PCB gold fingers?

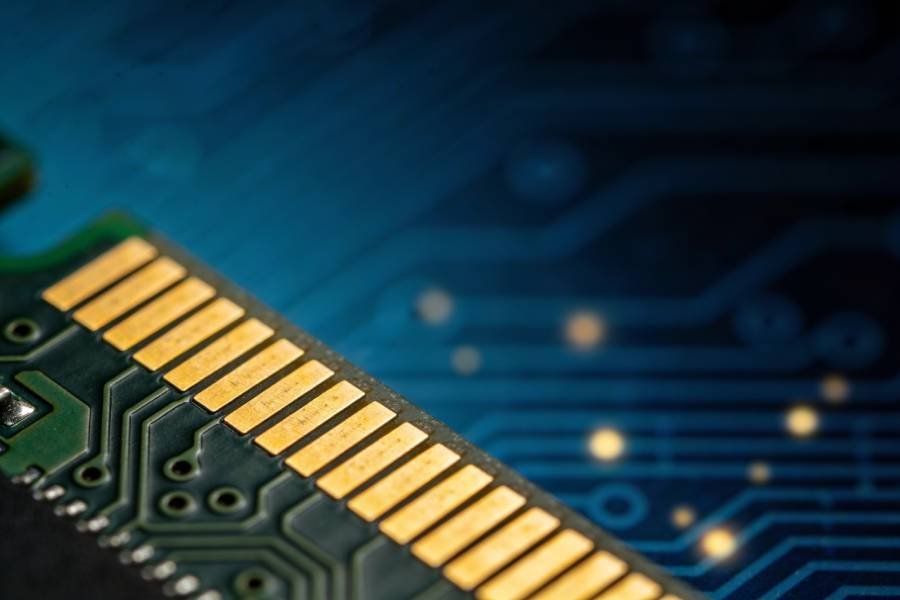

PCB gold fingers are the row of flat, gold‑plated pads arranged along the edge of a printed circuit board to form an edge connector. They act as the electrical and mechanical interface between the PCB and a mating slot or card‑edge connector on a larger board, backplane or chassis. Each finger corresponds to one contact in the connector, allowing power rails, ground and signals to be routed through a compact plug‑in interface instead of separate cables.
Where are gold finger PCBs used?
You can find gold finger PCBs in a wide range of products, from familiar computer hardware to industrial equipment. Typical examples include memory modules, graphics and PCIe expansion cards, storage controllers, network interface cards, PLC I/O boards and various modular communication or measurement cards. In all of these applications, the gold fingers make it easy to add, replace or upgrade modules while keeping the main system board unchanged.
Why design rules matter so much
Because gold fingers are both a connector and part of the PCB, they are exposed to mechanical wear, insertion forces and environmental stress that ordinary pads never see. If the finger geometry, bevel angle, plating thickness or keep‑out areas are not designed correctly, problems such as difficult insertion, scratched contacts, oxidation and intermittent electrical failures can appear in the field. At the same time, fabrication tolerances, routing near the board edge and inner‑layer copper clearances must all be considered so that the board can be manufactured and beveled without damaging the connector region. Robust gold finger PCB design therefore relies on a combination of good connector understanding, clear design rules and close collaboration with your fabrication partner.
Core Gold Finger PCB Design Rules
Finger width, spacing and alignment
The first step in designing reliable PCB gold fingers is matching the finger geometry to the mating connector. The width, spacing and alignment of each finger must follow the connector datasheet so that every contact springs onto the center of its corresponding pad with enough overlap and tolerance. In many edge‑connector systems you will see pitches around 1.0–1.27 mm and finger widths in the 0.8–1.5 mm range, but the exact values should always be derived from the connector you intend to use, not guessed.
When you place the fingers in your PCB layout, keep them perfectly aligned on a common reference line so that the effective edge of the connector is straight. Even small misalignments or inconsistent pad lengths can make insertion feel rough and cause certain contacts to carry more mechanical load than others. It is also good practice to maintain consistent clearances between fingers and to avoid irregular shapes that are hard to manufacture or inspect.
Finally, remember that manufacturing tolerances apply to both the PCB and the connector, so you should leave a small amount of clearance at the edges of the connector housing and avoid pushing the design right up against the mechanical limits. Using the connector manufacturer’s recommended land pattern and verifying it in the 3D view of your CAD tool can prevent many fitting problems later in the project.
Finger length and connector engagement
Finger length determines how much contact area is available between the PCB and the mating connector, and it directly affects both electrical reliability and mechanical wear distribution. If the fingers are too short, the connector springs may only touch near the very edge of the board, which increases contact resistance, concentrates wear in a small region and makes the assembly more sensitive to minor dimensional variations. On the other hand, excessively long fingers provide no real benefit and can complicate routing or interfere with keep‑out areas inside the connector housing.
A good rule of thumb is to make sure that, when the PCB is fully inserted, each connector spring lands well within the plated area of the finger with some margin on both sides. Many connector datasheets include a recommended contact length or show the normal contact point relative to the board edge, and this information should be translated directly into your finger length during layout. You should also keep all fingers in the same row at a consistent length unless there is a specific mechanical reason to stagger them, because uneven lengths can change the insertion feel and lead to unintentional sequencing of power and signals.
During design reviews, it is worth checking the 3D fit between the PCB and the connector model to confirm that the finger length is appropriate and that the board shoulder or keep‑out features do not prevent full engagement. If your system needs controlled sequencing—for example, ground first, then power, then signals—you can implement dedicated longer or shorter fingers intentionally, but these should follow the connector manufacturer’s guidance and be clearly documented in your design notes.
Bevel (chamfer) angle and depth
The bevel, or chamfer, on the edge of a gold finger PCB is what allows the board to slide smoothly into the connector without scraping or catching on the contacts. Most manufacturers support bevel angles around 30° or 45°, and the appropriate angle and depth depend on the board thickness and the connector design. If the chamfer is too shallow, insertion can feel stiff and may wear away the gold plating prematurely; if it is too aggressive, there may not be enough material left to support the fingers mechanically.
In your fabrication drawing, you should clearly specify the required bevel angle and whether all edges or only the gold finger edge should be beveled. It is also important to keep copper and other features a safe distance away from the bevel region, because the routing and chamfering tools need room to remove material without cutting into tracks or exposing unintended copper. Many design teams use a keep‑out zone that extends slightly beyond the final chamfer line on internal layers to ensure that no copper is exposed after the mechanical processing step.
From a DFM perspective, discussing your desired bevel with the fabricator early in the design can prevent misunderstandings about what is standard and what is treated as a special requirement. Providing the board thickness, connector datasheet and any mechanical drawings helps the manufacturer choose the right tooling and confirm that the specified chamfer is achievable with good yield.
Keep‑out areas for solder mask, silkscreen and copper
To maintain a clean, low‑resistance contact surface, the gold finger area must be completely free of solder mask and silkscreen ink. Any residual mask or legend on the fingers can interfere with the mating contacts, increase contact resistance and create wear debris inside the connector over time. In your CAD tool, you should define a solder mask opening that fully covers the finger region and check the Gerber outputs to ensure the mask and legend layers do not overlap the beveled edge.
Internal copper near the board edge also needs special consideration. If power or signal planes extend too close to the edge, the routing and beveling processes may expose copper that was intended to remain buried, which can lead to short circuits or compromised insulation distances. A common practice is to “pull back” internal copper by a defined distance from the gold finger edge—often a fraction of a millimetre—so that even after chamfering there is still enough laminate between the exposed edge and the nearest copper.
When in doubt, create explicit keep‑out regions on the copper, solder mask and silkscreen layers in your design around the gold finger edge. These regions act as a visual reminder during layout and make it easier for automated DRC checks to catch anything that accidentally encroaches on the connector area. They also give your fabrication partner a clear picture of where the edge connector is and what parts of the board must remain completely clean and unobstructed.
Vias near the gold finger pads
Vias placed in or near gold finger pads are a frequent source of reliability problems in the field. Plated‑through holes inside the finger area can trap plating solution, disturb the gold deposition and create uneven surfaces that damage the mating contacts. Even vias that are just outside the finger pads can be exposed or weakened by the beveling process, especially on thin boards or in designs with aggressive chamfers.
As a general rule, you should avoid placing any vias directly in gold finger pads unless you are using a filled and capped via process designed specifically for that purpose. Around the connector area, maintain a minimum clearance—often on the order of 0.5–1.0 mm—from the pad edge to the nearest via, and keep the via annular rings away from the chamfer zone. This spacing helps ensure that the mechanical tools do not cut into the via barrels and that the plating on the fingers remains smooth and continuous.
If routing density makes it difficult to maintain these clearances, consider alternate strategies such as using blind or buried vias, rerouting critical traces on inner layers or slightly adjusting the connector pinout in collaboration with the system designer. It is also a good idea to include a note in your fabrication drawing indicating that vias must not be present in the gold finger pads, reinforcing what is already encoded in the layout.
Plating type and thickness selection
Choosing the right plating type and thickness for PCB gold fingers is essential for balancing reliability, wear life and cost. Hard electroplated gold over a nickel underlayer is the traditional choice for edge connectors that will see many mating cycles, because it offers excellent wear resistance and very stable contact resistance. ENIG, on the other hand, provides a thinner immersion gold layer and is often used as a whole‑board finish, which can be attractive for prototypes or low‑cycle applications where cost is more critical than extreme durability.
For hard gold, typical thicknesses for gold fingers range from about 10–50 µin, with the higher end of that range reserved for connectors that need to handle hundreds or thousands of insertion cycles. Thinner plating around 3–5 µin may be acceptable on prototypes or in applications where the connector is rarely unplugged, but it will wear faster under repeated use. ENIG gold thickness is usually much lower, on the order of 1–3 µin, which is adequate for solderability and occasional contact but not ideal for heavy mechanical wear.
When specifying your design, it helps to estimate the expected number of mating cycles and the environment—such as temperature, humidity and vibration—and then choose a plating system accordingly. If you are unsure, sharing these requirements with your fabrication partner allows them to recommend a practical combination of hard gold or ENIG and an appropriate thickness range that meets your reliability goals without overspending on unnecessary gold.
Layer stack‑up and signal integrity
If high‑speed or sensitive signals run through the gold finger connector, you must treat the edge interface as part of the overall signal path and not just a mechanical feature. The impedance of traces leading into the fingers, the presence and continuity of reference planes, and the arrangement of differential pairs all influence how cleanly signals cross the connector boundary. Sudden changes in trace width, gaps in the return path or asymmetry between the positive and negative legs of a pair can introduce reflections, skew and common‑mode noise.
To maintain good signal integrity, design your stack‑up so that controlled‑impedance traces leading to the gold fingers have a consistent reference plane and avoid abrupt geometry changes at the transition into the connector. Keep differential pairs tightly coupled up to the edge and ensure that any layer transitions are handled with matched via structures rather than ad‑hoc routing. It can also be beneficial to reserve certain fingers for ground and place them strategically between high‑speed lines to reduce crosstalk, following guidance from both the connector vendor and your signal integrity tools.
Before finalizing the design, review the stack‑up and routing with your fabrication partner, particularly if you require specific impedance targets or if the connector will carry multi‑gigabit links. Providing clear impedance requirements and simulation results, where available, helps ensure that the manufactured gold finger PCB behaves as expected in the real system.
Common Gold Finger Design Mistakes (and How to Fix Them)
Even experienced PCB designers can run into problems when working with gold finger connectors, especially on the first few projects. Many issues only show up during assembly, testing or even in the field, where they are far more expensive to fix than at the layout stage. This section highlights some of the most common mistakes seen in gold finger PCB designs and offers practical suggestions to avoid or correct them.
Misaligned fingers and incorrect pitch
One of the most fundamental mistakes is mis‑matching the finger spacing or alignment to the connector pitch. If the fingers do not line up perfectly with the connector contacts, insertion can feel rough, certain pins may carry more mechanical and electrical load, and in extreme cases the board may not plug in at all.
How to fix it:
Always base the finger pattern directly on the connector datasheet or the manufacturer’s recommended land pattern. Use precise grid and snapping settings in your CAD tool, and double‑check that the total number of fingers, their pitch and the overall connector length match the mechanical drawing. A 3D fit check between the PCB model and the connector model is an excellent way to catch alignment problems before you generate Gerber files.
Gold fingers that are too short or uneven
Another frequent error is making the gold fingers too short or allowing inconsistent lengths across the edge. Short fingers reduce the effective contact area and can cause the connector springs to sit right at the edge of the plating, which increases contact resistance and accelerates wear. Uneven finger lengths can also introduce unintended sequencing of signals or create a harsh insertion feel.
How to fix it:
Consult the connector datasheet to determine the normal contact zone and ensure that the plated length of each finger comfortably covers this region with some safety margin. Keep all fingers in a row at the same length unless there is a deliberate, well‑documented reason to stagger them, such as controlled power‑before‑signal sequencing. During design reviews, visually inspect the finger row in your CAD tool and in 3D view to confirm that no pads are noticeably shorter or longer than their neighbors.
Plated holes and vias too close to the bevel
Placing plated‑through holes or vias in or near the gold finger pads is a classic reliability trap. Vias inside the pads can disrupt the gold plating and create uneven surfaces, while vias too close to the board edge or chamfer risk being exposed or weakened when the edge is routed and beveled. These issues may lead to cracking, contamination or intermittent connections after repeated insertion cycles.
How to fix it:
Avoid via‑in‑pad on gold finger pads unless you use a filled and capped via process specifically approved by your fabricator for connector applications. Define a clearance rule that keeps vias at least 0.5–1.0 mm away from the edge of the finger pads and the bevel region, and enforce it through your design‑rule checks. If routing is tight, consider rearranging signals, using blind or buried vias or slightly adjusting the connector pinout in cooperation with the hardware team.
Solder mask or silkscreen on the contact area
Leaving solder mask, legend or other inks on the gold finger contact surface is another common oversight. Even a thin film of mask or silkscreen can interfere with proper contact, increase resistance and generate debris as the connector wipes across the contaminated area. The result can be inconsistent performance, especially in low‑voltage or high‑frequency applications.
How to fix it:
In your PCB design, define a generous solder mask opening that fully covers the entire finger region and extends slightly into the bevel area. Check the silkscreen layer to ensure there are no reference designators, logos or polarity marks overlapping the fingers, and move any such markings farther away from the connector edge. Before sending files to fabrication, always review the mask and legend Gerber files or use your CAD tool’s Gerber preview to confirm that the contact area is completely clean.
Inadequate bevel angle or missing chamfer
Some designs omit the bevel altogether or specify a chamfer that is not compatible with the board thickness and connector geometry. Without a proper bevel, the sharp PCB edge can scrape against the connector springs, damaging the gold plating and making insertion feel harsh. Overly aggressive chamfers, on the other hand, may reduce the mechanical support for the fingers or expose internal copper if clearances are not respected.
How to fix it:
Follow the connector manufacturer’s recommendations or the PCB fabricator’s standard options for bevel angles, which are typically 30° or 45°. Explicitly call out the bevel angle and edge location in your fabrication drawing and keep copper, vias and other features at a safe distance from the chamfered edge. If you are unsure whether a particular combination of board thickness and chamfer is feasible, discuss it with your fabrication partner early in the design so adjustments can be made before layout is finalized.
Ignoring inner‑layer copper pull‑back
It is easy to focus on the outer layers of the gold finger region and forget that internal planes or tracks may extend right up to the board edge. During routing and beveling, these inner‑layer features can become exposed, leading to shorts, leakage paths or weakened insulation distances along the connector edge.
How to fix it:
Implement a copper pull‑back rule on all internal layers in the gold finger area, pulling planes and traces back from the final edge by a defined clearance distance. This distance should account for both the routing tolerance and the depth of the chamfer so that no inner copper is revealed after mechanical processing. Modern PCB tools allow you to define region‑based keep‑outs or layer‑specific clearances, making it much easier to enforce these rules consistently across the design.
Treating the gold finger like an ordinary pad
Perhaps the most subtle mistake is simply treating the gold finger connector like any other set of pads on the board and not giving it the extra attention it requires. This can manifest as insufficient communication with the fabricator, missing notes about plating thickness and bevel, or failing to check how the connector will be used and how often it will be cycled in the field.
How to fix it:
Make the gold finger region a dedicated review item in your design checklist and discuss it explicitly with your fabrication partner during quotation or DFM review. Clearly specify plating type, target thickness, bevel angle, keep‑out requirements and any mechanical or electrical constraints that are unique to your application. By elevating the edge connector to a first‑class design concern rather than an afterthought, you significantly reduce the risk of late‑stage surprises and production delays.
Practical DFM Checklist for Gold Finger PCBs
Even when your schematic and layout look correct, small manufacturability details around the gold finger area can still cause delays, engineering questions or scrap during production. Running through a simple DFM checklist before you release your files helps align expectations with your fabrication partner and ensures the edge connector can be built and beveled without surprises.
1. Confirm connector, board thickness and bevel
Before layout is finalized, make sure the basic mechanical parameters are fully defined. You should know the exact connector model, the recommended board thickness at the edge, the insertion depth and the preferred bevel angle so that your design can be matched to real tooling and fixtures.
Checkpoints:
- Connector datasheet attached to the project files.
- Board thickness at the gold finger edge clearly specified.
- Bevel angle and edge location called out in the fabrication drawing.
2. Verify finger geometry against the connector datasheet
Once the connector choice is clear, verify that the finger pattern in your PCB matches it exactly. This includes finger count, pitch, width, spacing and overall connector length, as well as any intentional sequencing features such as longer ground or power fingers.
Checkpoints:
- Finger pitch and pad width match the land pattern in the datasheet.
- All fingers in a row are aligned on a common reference line and have consistent length unless intentionally staggered.
- 3D fit check shows proper engagement when the board is fully inserted.
3. Review plating type and thickness requirements
DFM review is the best time to confirm whether you need hard gold, ENIG or a combination, and what gold thickness is truly required. Over‑specifying thickness will increase cost, while under‑specifying can reduce lifetime in high‑cycle connectors.
Checkpoints:
- Target plating type on fingers (hard gold, ENIG or hybrid) is specified in the fabrication notes.
- Gold thickness range is defined based on expected mating cycles and environment (for example, 10–20 µin for medium‑duty, 30–50 µin for high‑duty).
- Any special requirements for the rest of the board finish (ENIG, HASL, OSP, etc.) are clearly separated from the gold finger specification.
4. Check solder mask, silkscreen and copper keep‑out regions
Before sending Gerber files, confirm that the gold finger area is completely free of unwanted mask, legend and inner‑layer copper. Many production issues come from overlooked logos, reference designators or planes that extend too close to the edge and become exposed after chamfering.
Checkpoints:
- Solder mask openings fully expose the gold finger pads and bevel region with some safety margin.
- No silkscreen or other markings overlap the fingers or the chamfered edge.
- Internal copper has been pulled back from the edge by a defined distance on all layers in the gold finger area.
5. Ensure via and hole clearances around the fingers
Vias and holes near the connector edge should be checked carefully to avoid conflicts with routing, beveling and plating processes. Even if your design rules are set correctly, a manual review of the gold finger region is worthwhile.
Checkpoints:
- No vias are present inside gold finger pads unless a filled and capped process is specified.
- Vias and plated holes are kept at least 0.5–1.0 mm away from the pad edges and the chamfer zone.
- Any necessary mechanical mounting holes are placed far enough from the edge connector so that routing and beveling tools have sufficient clearance.
6. Validate stack‑up and signal integrity requirements
If the connector carries high‑speed or sensitive signals, stack‑up and impedance requirements should be revisited during DFM. Many fabricators can suggest minor stack‑up adjustments that simplify manufacturing while still meeting your electrical targets.
Checkpoints:
- Controlled‑impedance traces leading to the fingers have a continuous reference plane and appropriate geometry.
- Differential pairs remain tightly coupled right up to the edge, and any layer transitions use matched via structures.
- Impedance targets, layer stack‑up details and any SI concerns are documented and shared with the fabricator.
7. Prepare clear fabrication notes and documentation
Finally, make sure your documentation tells the fabrication team exactly what they need to know about the gold finger area. Clear notes reduce the risk of assumptions and minimize back‑and‑forth questions during CAM review.
Checkpoints:
- Fabrication drawing identifies the gold finger edge and specifies bevel angle, board thickness, plating type and thickness on the fingers.
- Any special inspection requirements for the edge connector, such as cosmetic criteria or contact resistance testing, are listed explicitly.
- Connector datasheets, stack‑up tables and any DFM comments from previous revisions are included with the manufacturing package.
By turning these checkpoints into a standard part of your release process, you can greatly reduce iterations with the board house and improve the chance that your first build of a gold finger PCB works as intended in the target system.
How JHYPCB Helps You Implement Robust Gold Finger Designs
Engineering support and DFM review
Designing a reliable gold finger PCB is much easier when you have direct access to engineers who understand both layout constraints and manufacturing limits. At JHYPCB, our technical team can review your connector choice, finger geometry, bevel requirements and stack‑up, then highlight any potential DFM issues before the board goes into production. As part of our standard quoting process, we offer a free DFM review of the gold finger area, checking items such as via clearances, solder mask openings, inner‑layer pull‑back and fabrication notes.
Flexible gold finger PCB fabrication service
Because we cooperate with multiple qualified PCB and PCBA factories in China, we can match your gold finger PCB design to the most suitable process and capacity. Whether you need ENIG or hard gold, thinner plating for prototypes or thicker plating for high‑cycle connectors, or specific board thickness and bevel combinations, we can arrange the right manufacturing route instead of forcing you into a single standard. Our partners support a wide range of board types—from simple two‑layer cards to multilayer and rigid‑flex designs—allowing you to use the same gold finger PCB fabrication service across different projects.
From prototype to small‑ and medium‑volume production
Many gold finger projects start with a small prototype run and then quickly move to higher quantities once the design is validated. JHYPCB is set up to handle this transition smoothly, offering quick‑turn prototypes for early testing and scalable capacity for small‑ and medium‑volume production when you are ready to ramp. Keeping fabrication, DFM support and, if required, assembly under one roof reduces communication overhead and helps maintain consistent quality from the first sample to the final batch.
Recommended next steps
If you are currently working on a new gold finger PCB, the best next step is to share your connector datasheet, Gerber or ODB++ files and target mating cycles with us. You can use our dedicated Gold Finger PCB fabrication page to upload your design, request a quote and receive a DFM report focused on the edge connector area before committing to production. This combination of solid design rules and experienced manufacturing support gives your project a much higher chance of working right the first time in the real system.
Conclusion
Gold finger PCBs play a critical role in many plug‑in cards and modular systems, so small design oversights around the edge connector can have outsized consequences in the field. By following clear design rules for finger geometry, beveling, keep‑out areas, vias, plating and stack‑up—and by running a structured DFM checklist before release—you can greatly reduce the risk of contact issues, production delays and expensive redesigns. Combining solid engineering practices with a fabrication partner that understands gold finger requirements gives your connector designs the best chance of working reliably from the very first build.
To turn these design rules into reliable hardware, learn more about our dedicated Gold Finger PCB fabrication & manufacturing service and request a free DFM review of your next project.
